Lesson 7: Server Submission

🏳️ Haven't completed the previous lesson?

No worries! You can pickup from here:

git checkout tags/lesson-7

In this lesson, we'll enhance the submission process to handle both offline storage and online server submission. We'll set up a JSON server to simulate a backend API and modify our Review page to automatically submit data to the server when online, while gracefully falling back to local storage when offline.

Getting Started​

Before we begin, make sure you have completed the previous lessons and have the development server running. We'll be working primarily with the Review page submission logic and setting up a mock backend server.

Step 1: Setting Up the JSON Server​

We'll use json-server to create a mock REST API that simulates a real backend server for testing online submission.

1.1: Understanding the Server Setup​

The project already includes the necessary configuration for running a JSON server:

json-server has already been installed as a development dependency. Here is the command for your reference:

npm install --save-dev json-server

Package.json script:

package.json
{
  "scripts": {
    "server": "json-server --watch db.json --port 3002"
  }
}

Database file:

db.json
{
  "trips": []
}

1.2: Start the JSON Server​

Open a new terminal window (keep your development server running in the original terminal) and run:

npm run server

You should see output similar to:

JSON Server started on PORT :3002
Press CTRL-C to stop
Watching db.json...

Index:
http://localhost:3002/

Static files:
Serving ./public directory if it exists

Endpoints:
http://localhost:3002/trips

Understanding the Setup:

  • Port 3002: The server runs on a different port than your React app (3000) to avoid conflicts
  • Watch mode: The server automatically reloads when db.json changes
  • REST endpoints: Automatically creates GET, POST, PUT, DELETE endpoints for the trips resource
Dev Tip: Proxy Configuration

The React app can communicate with the JSON server through a proxy configuration in vite.config.js:

vite.config.js
server: {
  open: true,
  port: 3000,
  proxy: {
    "/api": {
      target: "http://localhost:3002",
      changeOrigin: true,
      rewrite: (path) => path.replace(/^\/api/, ""),
    },
  },
},

How the Proxy Works:

  • Request: When your React app makes a request to /api/trips
  • Proxy intercepts: Vite development server catches requests starting with /api
  • Rewrites URL: Removes /api prefix, so /api/trips becomes /trips
  • Forwards: Sends the request to http://localhost:3002/trips (JSON server)
  • Response: JSON server response is sent back to your React app

This allows your frontend to use /api/trips in fetch calls while the actual JSON server runs on a different port without CORS issues.

Step 2: Understanding Server Submission Logic​

The Review page needs to detect whether the user is online or offline and handle submission accordingly.

2.1: Current Submission Logic​

Let's examine the current submission logic in the Review page:

src/pages/ReviewSubmit.jsx
const handleSubmit = async () => {
  if (!trip) return;

  const tripStore = app.stores[STORE_NAMES.TRIP_STORE];
  const tripCollection = tripStore.getCollection(COLLECTION_NAMES.TRIP_COLLECTION);

  try {
    const finalStatus = isOffline ? "Not Submitted" : "submitted";

    await tripCollection.update({
      id: trip.id,
      status: finalStatus,
      step: 4,
    });

    navigate(isOffline ? "/offline-confirm" : "/online-confirm");
  } catch (error) {
    console.error("Error submitting trip:", error);
    setError("Failed to submit trip. Please try again.");
  }
};

Current Behavior:

  • Offline: Sets status to "Not Submitted" and saves locally
  • Online: Sets status to "submitted" but only saves locally
  • Missing: Actual server submission when online

2.2: Enhanced Submission Strategy​

We need to modify this logic to actually submit to the server when online:

  1. Check online status using useOfflineStatus
  2. If offline: Save locally with "Not Submitted" status
  3. If online: Submit to server AND save locally with "submitted" status
  4. Handle errors: Fall back to offline mode if server submission fails

Step 3: Implementing Server Submission​

We'll break the server submission implementation into smaller, manageable steps to make it easier to follow along.

3.1: Add Basic Error Handling Structure​

First, let's replace the simple submission logic with a structure that handles offline and online cases separately. We'll add try/catch blocks for proper error handling:

src/pages/ReviewSubmit.jsx
const handleSubmit = async () => {
  if (!trip) return;

  const tripStore = app.stores[STORE_NAMES.TRIP_STORE];
  const tripCollection = tripStore.getCollection(COLLECTION_NAMES.TRIP_COLLECTION);

   try {
    const finalStatus = isOffline ? "Not Submitted" : "submitted";

    await tripCollection.update({
      id: trip.id,
      status: finalStatus,
      step: 4,
    });

    navigate(isOffline ? "/offline-confirm" : "/online-confirm");
  } catch (error) {
    console.error("Error submitting trip:", error);
    setError("Failed to submit trip. Please try again.");
  }
  if (isOffline) {
    // Offline: Save status as "Not Submitted" locally
    // We'll implement this in the next step
  } else {
    // Online: Attempt to submit to the backend
    // We'll implement this in subsequent steps
  }
};

What We're Setting Up:

  • Branching Logic: Clear separation between offline and online submission paths
  • Foundation for Error Handling: Structure ready for try/catch blocks
  • Placeholder Comments: Clear indicators of what we'll implement in each branch

3.2: Implement Offline Submission​

Now let's implement the offline submission path with proper error handling:

src/pages/ReviewSubmit.jsx
if (isOffline) {
  // Offline: Save status as "Not Submitted" locally
  try {
    await tripCollection.update({
      id: trip.id,
      status: "Not Submitted",
      step: 4, // Mark as completed step 4 (review)
    });
    navigate("/offline-confirm");
  } catch (error) {
    console.error("Error saving trip offline:", error);
    setError("Failed to save trip for offline submission. Please try again.");
  }
} else {
  // Online: Attempt to submit to the backend
  // We'll implement this in subsequent steps
}

Understanding Offline Submission:

  1. Status Setting: Mark as "Not Submitted" to indicate it needs server submission later
  2. Step Tracking: Set step to 4 to mark the review process as complete
  3. Error Handling: Catch and display user-friendly error messages
  4. Navigation: Direct to offline confirmation page

3.3: Prepare Server Submission Data​

Let's add the data preparation logic for server submission. The catches state variable is already available from Lesson 6:

src/pages/ReviewSubmit.jsx
} else {
  // Online: Attempt to submit to the backend
  try {
    // Prepare submission data with trip and associated catches
    const submissionData = {
      trip: trip,
      catches: catches,
    };
    // Server request will be added in next step
  } catch (error) {
    // Error handling will be completed in next step
    console.error("Error submitting trip online:", error);
  }
}

Data Structure Overview:

The server receives a comprehensive JSON object containing:

  • trip: Complete trip details (dates, times, weather, status)
  • catches: Array of all associated catch records for the trip

3.4: Implement Server Request​

Now let's add the actual server request using the fetch API:

src/pages/ReviewSubmit.jsx
  } else {
    // Online: Attempt to submit to the backend
    try {
      // Prepare submission data with trip and associated catches
      const submissionData = {
        trip: trip,
        catches: catches,
      };

      const response = await fetch("/api/trips", {
        method: "POST",
        headers: {
          "Content-Type": "application/json",
        },
        body: JSON.stringify(submissionData),
      });

      if (!response.ok) {
        const status = response.status;
        const statusText = response.statusText ? response.statusText.trim() : "";
        const errorDetail = statusText
          ? `${status} ${statusText}`
          : `${status} Server error occurred`;

        console.error("Server submission failed:", errorDetail);
        setError(`Server submission failed: ${errorDetail}`);
        return;
      }
    } catch (error) {
      // Error handling will be completed in next step
      console.error("Error submitting trip online:", error);
    }
  }
};

// Success handling will be added in next step

Understanding the Server Request:

  1. Endpoint: /api/trips (proxied to JSON server at port 3002)
  2. Method: POST to create a new trip record
  3. Headers: Content-Type specifies JSON data
  4. Body: Stringified submission data object
  5. Error Handling: Check response status and provide detailed error messages

3.5: Handle Server Success​

Finally, let's implement the success path when server submission completes:

src/pages/ReviewSubmit.jsx
    } else {
      try {
        const submissionData = {
          trip: trip,
          catches: catches,
        };

        const response = await fetch("/api/trips", {
          method: "POST",
          headers: {
            "Content-Type": "application/json",
          },
          body: JSON.stringify(submissionData),
        });

        if (!response.ok) {
          const status = response.status;
          const statusText = response.statusText
            ? response.statusText.trim()
            : "";
          const errorDetail = statusText
            ? `${status} ${statusText}`
            : `${status} Server error occurred`;

          console.error("Server submission failed:", errorDetail);
          setError(`Server submission failed: ${errorDetail}`);
          return;
        }

        // If server submission is successful, update local status to "submitted"
        await tripCollection.update({
          id: trip.id,
          status: "submitted",
          step: 4,
        });
        navigate("/online-confirm");
      } catch (error) {
        // Error handling will be completed in next step
        console.error("Error submitting trip online:", error);
        // Catch network errors or other issues with the fetch call
        console.error("Error submitting trip online:", error);
        setError(
          "Failed to submit trip. Check your internet connection or try saving offline.",
        );
      }

Complete Implementation Summary:

Now that we've implemented all the steps, here's what our enhanced submission logic accomplishes:

  1. Offline Path: Simple local save with "Not Submitted" status and proper error handling
  2. Online Path:
    • Prepare submission data combining trip details and associated catches
    • Submit complete data structure to server using fetch API
    • Handle detailed error responses with status codes and messages
    • If successful: Update local status to "submitted"
    • If server fails: Display error message to user
  3. Progressive Enhancement: Each step builds upon the previous one, making it easier to debug and understand

Step 4: Testing Server Submission​

4.1: Test Online Submission​

Continuing from lesson 6 where we saved a trip offline, let's now test submitting it online:

  1. Ensure JSON server is running: Check that npm run server is still active in your terminal

  2. Navigate to the Home page: You should see one trip with status "READY TO SUBMIT" (from lesson 6)

  3. Change network settings: In browser dev tools (F12), go to Network tab and change from "Offline" to "No throttling"

  4. Click on the saved trip: This will take you back to the Review and Submit page

  5. Verify online status: You should now see the green "Submit" button instead of the blue "Save" button

  6. Click the Submit button: Submit the trip to the server

  7. View success page: You should see the success confirmation:

    Success Page

  8. Check server data: Open a new browser tab and navigate to http://localhost:3002/trips

  9. Return to the app: Go back to your app tab and click the Home button

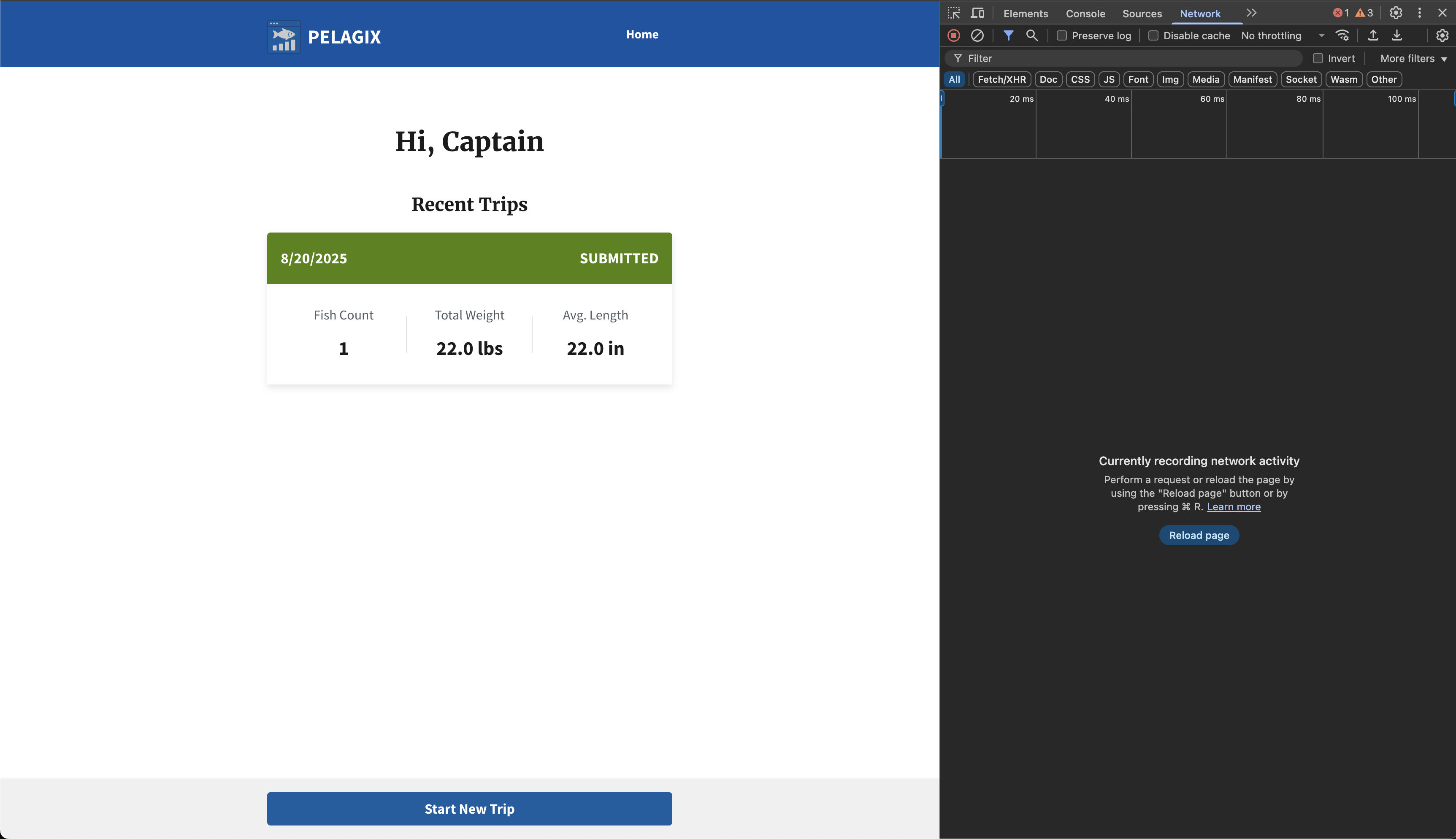

  10. Verify submitted status: Your trip should now show with "SUBMITTED" status:

    Submitted Status

Expected Results:

  • Trip data appears in the JSON server at http://localhost:3002/trips
  • User is navigated to /online-confirm success page
  • Local storage shows status as "submitted"
  • Trip card on homepage displays green "SUBMITTED" status

4.2: Test Offline Mode​

Let's test creating a new trip entirely offline:

  1. Go offline: Use browser dev tools (F12 → Network → Offline)
  2. Start from Home: Navigate to the Home page and click "Start New Trip"
  3. Complete the trip workflow:
    • Fill out the Start Trip form
    • Add catches in the Catch Log
    • Complete the End Trip form
    • Navigate to the Review page
  4. Verify offline status: Notice the blue "Save" button appears instead of green "Submit"
  5. Click save: Trip should save locally as "Not Submitted"
  6. Return to Home: Click the Home button to see your trip with "READY TO SUBMIT" status
  7. Check server: Open a new tab to http://localhost:3002/trips - no new data should appear

4.3: Test Server Failure Gracefully​

  1. Stop the JSON server: Terminate the npm run server process
  2. Try to submit online: The app should detect server failure
  3. Verify fallback: Should save locally as "Not Submitted" and show error message

Expected Behavior:

  • ✅ Graceful degradation when server is unavailable
  • ✅ User feedback about server status
  • ✅ Data never lost - always saved locally

Step 5: Viewing Submitted Data​

5.1: Inspect Server Data​

Visit http://localhost:3002/trips in your browser to see all submitted trips in JSON format:

[
  {
    "trip": {
      "id": "123e4567-e89b-12d3-a456-426614174000",
      "tripDate": "2024-01-15",
      "startTime": "06:00",
      "startWeather": "Sunny",
      "endTime": "14:00",
      "endWeather": "Cloudy",
      "status": "submitted"
    },
    "catches": [
      {
        "species": "Bass",
        "weight": 3.5,
        "length": 14,
        "tripId": "123e4567-e89b-12d3-a456-426614174000"
      }
    ],
    "id": 1
  }
]

5.2: Monitor Local vs Server Data​

Compare what's stored locally (IndexedDB) versus what's submitted to the server:

  • Local data: Always present for offline capability
  • Server data: Only present for successfully submitted trips
  • Status field: Indicates whether trip needs server submission

Conclusion​

You have successfully implemented a robust submission system that handles both online and offline scenarios! Your RADFish application now:

Key Accomplishments:

  • Dual-mode submission: Automatically submits to server when online, saves locally when offline
  • Graceful degradation: Falls back to offline mode when server is unavailable
  • Data persistence: Ensures user data is never lost regardless of connectivity
  • User feedback: Provides clear visual indicators of submission status
  • Error handling: Manages server failures without breaking the user experience

Your application now provides a production-ready experience that works reliably in any network condition, making it suitable for field work where connectivity may be intermittent.
